DF54 Coffee Grinder - Grind Range Guide

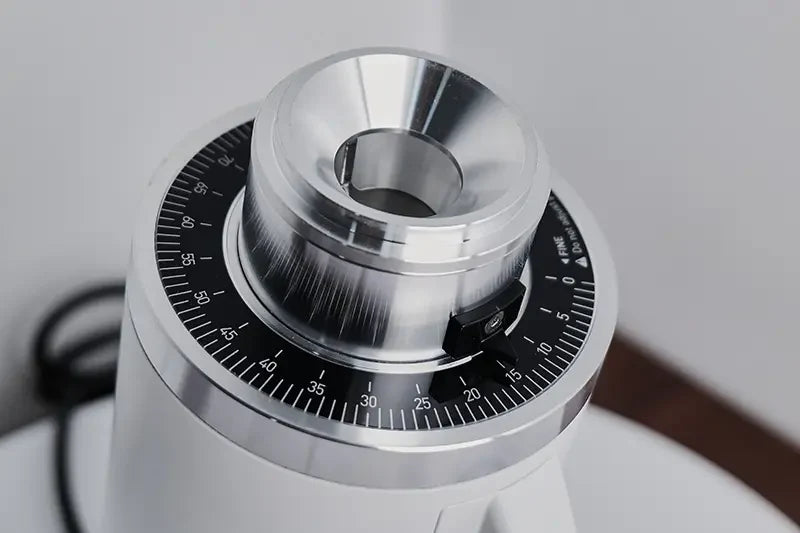

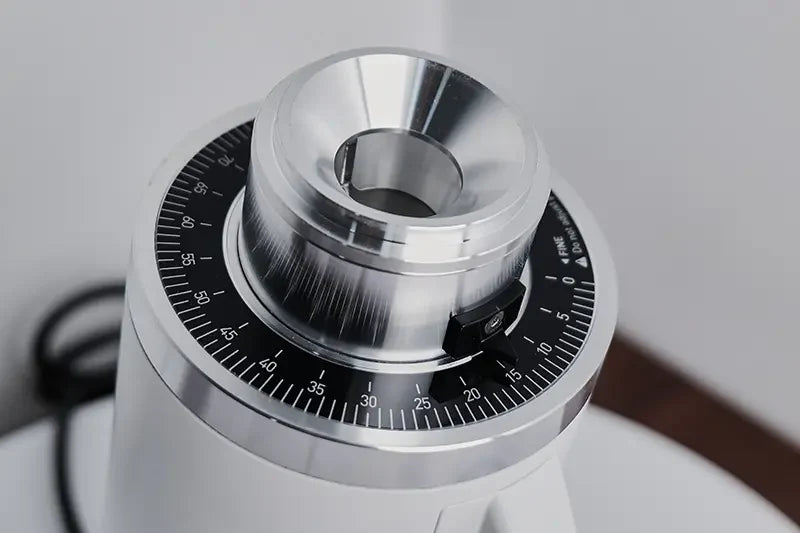

DF54 Grind Settings Chart

Use the following ranges to find the appropriate general area of the dial, then adjust according to taste, brew time and flow rate.

*The dial settings and micron ranges are approximate. Ground coffee contains a distribution of particle sizes rather than one uniform particle size. Results may vary depending on the grinder’s zero point, burr calibration, burr alignment, burr geometry, coffee and brewing equipment.

For a complete step-by-step espresso process using dose, beverage yield, shot time and taste, see our guide to dialing in espresso on a DF54 or DF64 Gen 2.

How to Adjust DF54 Grind Settings

• Start within the recommended range: Choose a starting point from the chart, then adjust according to taste, brew time and flow.


• Make small adjustments: Move the dial gradually and test again. Small changes can have a noticeable effect, particularly when grinding for espresso.


• Use brew time as a guide: If water passes through the coffee too quickly, adjust finer. If the brew stalls or flows too slowly, adjust coarser.


• Keep other variables consistent: Keep your dose, beverage yield, water temperature and preparation technique consistent while adjusting the grind.


• Measure dose and yield accurately: A precise espresso scale makes it easier to compare results while dialing in.


• Do not expect identical settings from every grinder: Two DF54 grinders may produce different results at the same displayed number because their zero points, burr alignment and calibration can differ.

DF54 Settings by Brew Method

Espresso

Assuming your dose, beverage yield and puck preparation remain consistent, adjust slightly finer if the shot runs quickly and tastes sour or under-extracted. If the machine chokes or the shot runs very slowly, adjust slightly coarser. Use taste alongside flow and shot time rather than relying on one indicator alone.

Moka Pot

Use a grind that is generally finer than pour-over but coarser than a typical espresso setting. If the coffee tastes weak or under-extracted, adjust finer. If flow becomes restricted or the coffee tastes harsh, adjust coarser.

AeroPress

AeroPress recipes tolerate a relatively wide range of grind sizes. A finer grind will generally increase extraction and body, while a coarser grind can improve clarity or suit recipes with longer steep times.

Pour-Over

If the brew drains slowly or tastes muddy and astringent, adjust coarser. If it drains quickly or tastes hollow, thin or weak, adjust slightly finer.

French Press

Begin with a coarse setting to limit excessive sediment. If the coffee tastes weak or under-extracted, adjust slightly finer or increase the steep time. If it tastes harsh or overly muddy, adjust coarser.

Cold Brew

Begin toward the coarse end of the DF54’s range. A coarse grind suits longer immersion times and can make filtration easier. Adjust slightly finer if the resulting coffee tastes weak after brewing for the intended duration.

DF54 Grind Settings FAQ

What DF54 setting should I start with for espresso?

Begin within the approximate 5–30 range shown in the chart. The appropriate setting will depend on your grinder’s zero point, coffee, dose, basket and desired beverage yield. Adjust according to shot flow and taste rather than trying to reach one universal dial number.

How much should I adjust the DF54 dial each time?

Make small adjustments, particularly for espresso. Large changes can move past the appropriate setting quickly and make it harder to identify which adjustment improved the result.

Do different coffee beans need different grind settings?

Yes. Roast level, origin, processing method, freshness and bean density can all affect the appropriate grind setting. You may also need to adjust the grinder gradually as coffee ages.

Why is my DF54 setting different from someone else’s?

DF54 dial numbers are reference points rather than universal grind measurements. Differences in zero point, burr calibration, burr geometry, alignment, coffee and brewing equipment can produce different results at the same displayed setting.

Are the micron measurements exact?

No. The micron ranges describe the approximate grind-size region commonly associated with each brewing method. Coffee grounds contain particles of different sizes, and the distribution can vary with burr geometry, alignment, coffee and grinder calibration.

Should I adjust the grind setting while the DF54 is running?

Make grind-setting adjustments while the grinder is running and the burrs are spinning, particularly when moving finer. This reduces the risk of trapped coffee resisting the movement as the burr gap closes. Make small adjustments and never force the dial.

For further cleaning, adjustment and workflow advice, see our DF54 and DF64 Gen 2 care and maintenance guide.

Can changing the burrs affect DF54 grind settings?

Yes. Different burr geometries can alter grind distribution, extraction behaviour and the dial position needed for a particular brew method. Explore the available 54mm burr options for the DF54.

Is the DF54 grind settings chart exact?

No. The chart provides broad starting ranges. Burr calibration, alignment, burr geometry, coffee characteristics and brewing technique can all shift the most suitable setting.
